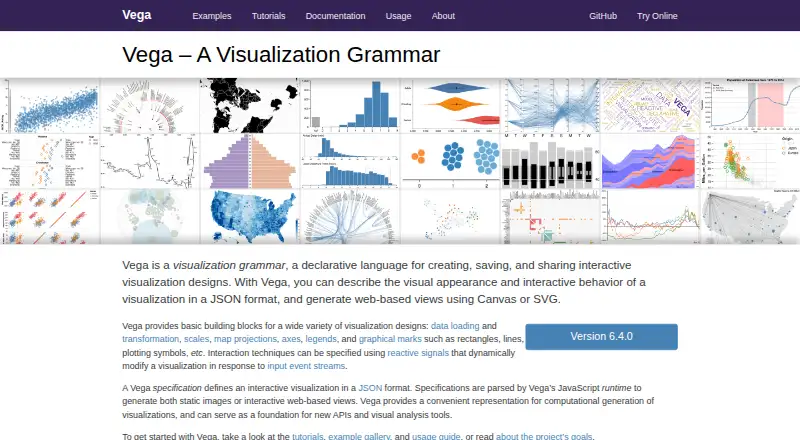

Vega and Vega-Lite's own site

What Vega and Vega-Lite is

Vega and Vega-Lite are open-source grammars for creating data visualizations from JSON specifications. Vega provides the lower-level toolkit for defining data loading and transformation, scales, map projections, axes, legends, graphical marks, and input-driven interactions. Data can be inline, loaded from a URL, or supplied at runtime, in formats including JSON, CSV, TSV, DSV, and TopoJSON. Vega-Lite offers a higher-level grammar and shorter JSON syntax for analysis and presentation, with aggregation, binning, filtering, sorting, layered and multi-view displays, and interactive selections. Visualizations can be interactive in a browser, embedded in web pages with Vega-Embed, or rendered as static images. Server-side rendering supports PNG and SVG, while command-line utilities can also create PDFs. Vega is available as a JavaScript module and can be used in Node.js through its View API. The ecosystem includes Altair’s Python API, JupyterLab, Observable, Kibana, a JavaScript API, and Vega-Editor, which can produce a Vega specification from a Vega-Lite one. The project is free under the BSD-3-Clause license and aims to support work ranging from exploratory analysis to custom visual communication.

Who it suits

Vega and Vega-Lite suit people building interactive or static data visualizations for analysis and presentation. They are also a fit for web and JavaScript developers, including Node.js users, who want to embed or render visualizations from specifications.

What it does well

  • Free under the BSD-3-Clause license.
  • Accepts inline, URL-loaded, and runtime-bound data.
  • Vega-Lite supports filtering, aggregation, and interactive selections.
  • Can render browser views and static PNG, SVG, or PDF.
  • Vega-Embed can load specifications from a URL.
  • Ecosystem includes JupyterLab, Observable, Altair, and Kibana.

What to know first

  • Default expression handling is not compliant with standard Content Security Policy.
  • Server-side PNG output and accurate font metrics require node-canvas.
  • PDF output is through command-line utilities.

Plans

PlanBilled and limitsPrice
Vega and Vega-LiteOpen source visualization grammars · Vega uses a BSD-3-Clause licenseFree

As vega.github.io lists them, read 11 Oct 2026. The maker's own page has the final word.

Getting started

  1. Visit https://vega.github.io/vega/.
  2. Use Vega’s JSON grammar or Vega-Lite’s higher-level JSON syntax to define a visualization.
  3. Provide data inline, by URL, or at runtime.
  4. Use Vega-Embed to add a visualization to a web page, or import Vega as a JavaScript module.
  5. For Node.js use Vega’s View API; for online editing, use Vega-Editor.

Verdict

Choose Vega and Vega-Lite if you want free, specification-based tools for interactive visualizations, analysis, or presentation. Look elsewhere if your server-side rendering setup cannot use node-canvas or your security requirements need default standard Content Security Policy compliance; an alternative expression interpreter is available for CSP-compliant use.

Questions

How much does Vega and Vega-Lite cost?

The listed plan is free. The project is free and uses the BSD-3-Clause license.

What data sources and formats can it use?

Data may be inline, loaded from a URL, or bound at runtime. Listed formats include JSON, CSV, TSV, DSV, and TopoJSON.

Can I use the visualizations on a website?

Yes. Vega-Embed adds Vega or Vega-Lite visualizations to web pages and can load specification files from a URL.

Can it produce static files?

Vega can render static PNG and SVG images server-side, and command-line utilities can render PDF files.

Does it work with JavaScript and Node.js?

Vega can be imported as a JavaScript module and used in Node.js projects through its View API.

What should I know about security and server rendering?

Vega is not compliant with standard Content Security Policy by default, but an alternative expression interpreter is available. Server-side PNG generation and accurate font metrics require node-canvas, which is not included by default in the vega package.

Facts from Vega and Vega-Lite's own pages

Analysis features
Vega-Lite supports data transformations such as aggregation, binning, filtering, and sorting, plus layered and multi-view displays and interactive selections. · vega.github.io, 11 Oct 2026
Dashboard type
interactive · vega.github.io, 23 Sept 2026
Data sources
Inline data,URL-loaded data,runtime-bound data; JSON,CSV,TSV,DSV,TopoJSON · vega.github.io, 23 Sept 2026
Ecosystem integrations
The Vega-Lite ecosystem lists integrations including Altair’s Python API, a Vega-Lite JavaScript API, JupyterLab, Observable, and Kibana. · vega.github.io, 11 Oct 2026
Embedded dashboards
Yes · vega.github.io, 23 Sept 2026
Features
Vega supports data loading and transformation, scales, map projections, axes, legends, graphical marks, and reactive interactions driven by input events. · vega.github.io, 11 Oct 2026
Free plan
Yes · vega.github.io, 23 Sept 2026
Intended audience
The project describes its goal as supporting use cases from exploratory data analysis to communication through custom visualization design. · vega.github.io, 11 Oct 2026
JavaScript and Node.js
Vega can be imported as a JavaScript module and used in Node.js projects with its View API. · vega.github.io, 11 Oct 2026
License
The Vega repository identifies its license as BSD-3-Clause. · github.com, 11 Oct 2026
Online editor
The Vega-Lite ecosystem identifies Vega-Editor as an online editor for Vega and Vega-Lite that can output a Vega specification from a Vega-Lite specification. · vega.github.io, 11 Oct 2026
Platform
web · vega.github.io, 23 Sept 2026
Rendering
Vega can render interactive browser visualizations or static PNG and SVG images server-side, and its command-line utilities can also render PDF files. · vega.github.io, 11 Oct 2026
Security constraint
Vega is not compliant with standard Content Security Policy by default because its expression language uses the Function constructor; an alternative expression interpreter is available for CSP-compliant use. · vega.github.io, 11 Oct 2026
Server-side dependency
Server-side PNG generation and accurate font metrics require node-canvas, which is not included by default in the vega package. · vega.github.io, 11 Oct 2026
Support
The project directs users to the Vega discussion forum and Slack organization for help and sharing examples. · github.com, 11 Oct 2026
Vega-Lite
Vega-Lite is a higher-level grammar with concise JSON syntax for creating visualizations for data analysis and presentation. · vega.github.io, 11 Oct 2026
Web integration
Vega-Embed adds Vega or Vega-Lite visualizations to web pages and can load specification files from a URL. · vega.github.io, 11 Oct 2026
What it does
Vega is a declarative JSON grammar for creating, saving, and sharing interactive visualizations rendered as web views using Canvas or SVG. · vega.github.io, 11 Oct 2026
