OpenCAD

Free trial Self-hostedWeb

Visit OpenCAD Alternatives Pricing

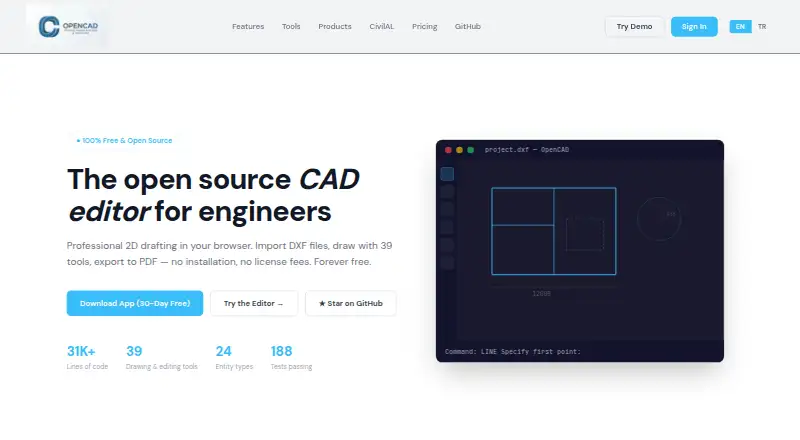

OpenCAD's own site

What OpenCAD is

OpenCAD is a browser-based 2D CAD editor for engineers, offered on the web and as self-hosted software. It provides 39 drawing and editing tools, including LINE, CIRCLE, ARC, POLYLINE, HATCH, DIMENSION, TRIM, OFFSET, FILLET, and ARRAY. AutoCAD DXF files can be imported and exported with roundtrip support while preserving 24 entity types. Layer controls cover visibility, locking, colors, linetypes, and isolation. OpenCAD is described as open source under the MIT License and self-hostable. The listed OpenCAD plan costs $5 a month, with the first 30 days free and no credit card required. CivilAL modules for progress billing, quantity surveying, earned value, and cost analysis can run separately or alongside OpenCAD. The site says it is built with React, TypeScript, Three.js, and FastAPI.

Who it suits

It suits engineers needing browser-based 2D drafting with DXF exchange and self-hosting. Civil engineers may also use the separately described CivilAL modules.

What it does well

  • 39 drawing and editing tools
  • DXF roundtrip support preserving 24 entity types
  • MIT-licensed and self-hostable
  • Layer visibility, locks, colors, and isolation
  • 30-day trial without a credit card

What to know first

  • No native DWG support
  • Paid plan costs $5 a month
  • CivilAL modules target civil engineering workflows

Plans

PlanBilled and limitsPrice
OpenCADProfessional 2D CAD · DXF native, DWG export · Browser-based · MIT licensed · Self-hostable$5 a month

As opencad.dev lists them, read 10 Oct 2026. The maker's own page has the final word.

Verdict

OpenCAD combines a broad 2D toolset with DXF roundtripping, layer controls, and self-hosting. Buyers needing native DWG should note that DWG export uses ODA File Converter instead.

Facts from OpenCAD's own pages

Civil engineering tools
The CivilAL suite includes progress billing, quantity surveying, earned value, and cost analysis modules. · opencad.dev, 10 Oct 2026
Drawing tools
It offers 39 drawing and editing tools, including LINE, CIRCLE, ARC, POLYLINE, HATCH, DIMENSION, TRIM, OFFSET, FILLET, and ARRAY. · opencad.dev, 10 Oct 2026
DXF support
It imports and exports AutoCAD DXF files with roundtrip support and preserves 24 entity types. · opencad.dev, 10 Oct 2026
Exports
It exports vector PDFs and can export DWG through ODA File Converter. · opencad.dev, 10 Oct 2026
Integrations
The CivilAL product modules are described as working standalone or integrated with OpenCAD. · opencad.dev, 10 Oct 2026
Intended users
The site describes OpenCAD as a CAD editor for engineers and says its CivilAL tools are designed for civil engineers. · opencad.dev, 10 Oct 2026
Layers
Its layer system supports visibility, lock states, colors, linetypes, and layer isolation. · opencad.dev, 10 Oct 2026
License and hosting
The page describes OpenCAD as open source under the MIT License and self-hostable. · opencad.dev, 10 Oct 2026
Purpose
OpenCAD is a browser-based 2D CAD editor for engineers. · opencad.dev, 10 Oct 2026
Technology
The site says OpenCAD is built with React, TypeScript, Three.js, and FastAPI. · opencad.dev, 10 Oct 2026
Trial
The pricing section says the first 30 days are free and no credit card is required. · opencad.dev, 10 Oct 2026
